Long Goods Handling Cantilever Shelving For Timber , Pipe , Tube Storage

China Long Goods Handling Cantilever Shelving For Timber , Pipe , Tube Storage supplier

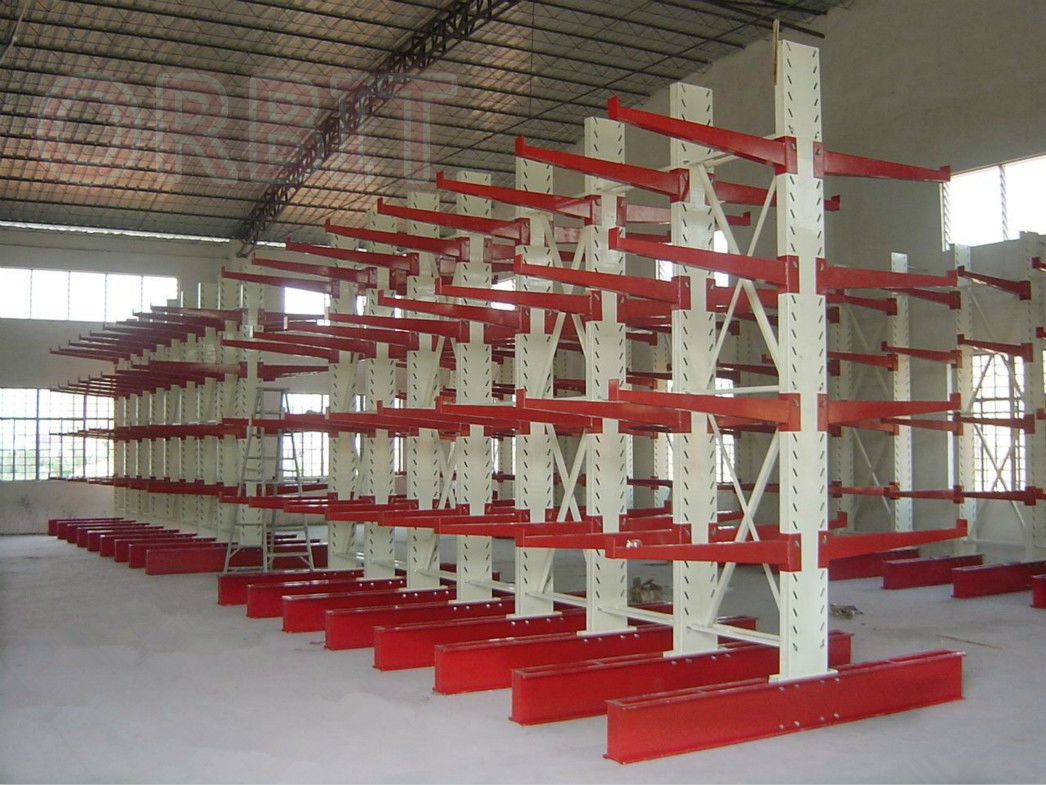

Large Image :  Long Goods Handling Cantilever Shelving For Timber , Pipe , Tube Storage

Product Details:

Place of Origin: China
Brand Name: ORBIT
Certification: JIS, CE, ISO9001
Model Number: CRS1200WA

Payment & Shipping Terms:

Minimum Order Quantity: 10 Units
Price: Negotiable
Packaging Details: Wrapping Film, Packing Belt and Wooden Bar
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 300 Tons / Month
Price Term:: EXW, FOB, CIF, DAF, DDP
Detailed Product Description



Long Goods Handling Cantilever Shelving For Timber , Pipe , Tube Storage





Quick Details:



Product Name Cantilever Racking System



Unit Bay Standard Specification Extra Bay Added × W1200mm

(Customized Sizes Available)

Single Sided Double Sided
W1200×D600×H2500mm W1200×D1200×H2500mm
W1200×D1000×H3000mm W1200×D2000×H3000mm
W1200×D1200×H3600mm W1200×D2400×H3600mm
W1200×D1500×H4800mm W1200×D3000×H4800mm
Cantilever Rack Levels 2 levels, 3 levels, 4 levels, 5 levels
Arm Length 600mm, 1000mm, 1200mm, 1500mm
Arm Load Capacity 300KG, 500KG, 700KG per arm
Raw Material high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group
Material Thickness 1.5mm, 1.8mm, 2.0mm, 2.5mm
Surface Treatment deoil, derusting and powder coat paint finish
Rack Colors standard blue, orange and customized available
HS Code 7308900000





























































Description:



Cantilever Racking is designed to maximize your storage space while giving you easy access to your products. With Cantilever racking you can work by the safest storage practices. The Cantilever racking system is ideal for storing your long, irregular and mixed loads.



We offer a complete range of cantilever racking systems for the storage of long goods. For loads varying from 50 to 1000 kg per cantilever arm and for most types of long goods an optimized storage solution can be provided.



Typical long goods are metal and plastic tubes, wooden boards, hot rolled steel profiles. The construction of our cantilever racking is made of hot rolled steel profiles (HEA or IPE) in various sizes. The standard finish is a high quality epoxy polyester powder coating for inside applications or a hot galvanized coating for outside applications.



ORBIT line of cantilever storage racks are an ideal storage solution in many situations. These flexible and compact industrial storage rack designs help you lower handling time and costs.


Cantilever racking is ideal for the safe and organized storage of long and heavy loads. They are also ideal systems for storing steel bars, pipes, tubes, furniture and packs of timber. Some of them are also suitable for storing boards, metal sheets or large and valuable items such as crates or boxes and even white goods.


The products are stored horizontally on the arms and handled either manually or by using forklift truck or cranes. The best solutions provide a clear layout with easy access, as they do away with the need for vertical uprights at the front of the racking and use the minimum of space, all at low cost.

Cantilever racking is available in both single sided and double sided configurations. The double sided rack provides maximum storage capacity on a single central column while the single sided rack is designed to fit flush against a wall.


Being modular in nature, additional arms, uprights and braces may be added as storage requirements change.



Technical Characteristics of Cantilever Racking:



The column and foot are welded or bolted together



The cantilever racks can be used single or double sided



Column heights of up to 9 meter, perforated every 100mm (or 50mm optional)



The cantilever racking is suitable for forklift and crane handling



Ground guidance can be provided as an option



The arms are bolted and adjustable per 100mm, corresponding with the sizes of the stored goods



Arm lengths of our Cantilever racking range from 600 to 2500mm



Designing factors:



What types of cantilever racking you need -- double sided or single sided?



What’s the rack size W×D×H? -- most popular is W=1200mm and extra bay can be extended, D=1000mm or 2000mm, H=3600mm



How many arm levels you want-- most popular is 3 or 4 levels



Load carry capacity per arm-- most popular is 300 or 500KG



If possible send us your warehouse layout and tell us your requirements so that we can set up designing for your side confirmation





Services:


Our free services include consultations and sample CAD layouts of your proposed rack system. Our design experts can analyze your application and find an application specific solution for you. Get the racking system you need at the best price guaranteed.
