              Raw Materials
Rolling Mill
Rolling Mill
Bending Machine
Manufacturing Center
Before Painting
Automatic Powder Coated Line
After Painting
Beam Package
Upright Post Package
Loading Photos
After Loading
Products Protection
After Installation
|
Raw Materials Cold rolling steel Q235B (SS400) |
Rolling Mill Roll and shape to upright posts or box beams |
Rolling Mill Roll, shape and cut step beams only |
Bending Machine For bending steel decking and etc. |
Manufacturing Center Main workshop |
Before Painting Items after production and before powder coating |
Automatic Powder Coated Line For painting upright post, beams and etc. |
After Painting Items after powder coating |

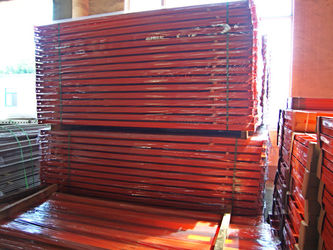

Beam Package Wrapping film, packing belt and wooden bar |
Upright Post Package Wrapping film, packing belt and wooden bar |
Loading Photos Loading products according to customer's requirements |
After Loading Loading products according to customer's requirements |
Products Protection Using air bags protect products inside container |
After Installation We send videos, drawings and photos customer assemble racks or we send workers assembly |
|
1 2 3 4 5 6
      Box Beam
Box Beam & Upright Post
Foot Plate
Upright Post & Box Beam
Box Beam
Upright Post
|
Box Beam 140×50×1.5mm |
Box Beam & Upright Post 80×50×1.5mm |

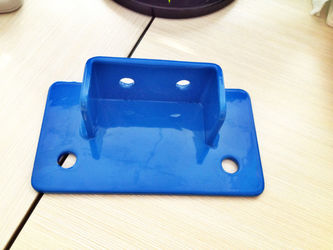

Foot Plate Base plate for upright post 6.0mm thickness |
Upright Post & Box Beam 1.5mm thickness steel |
Box Beam 100×50×1.5mm |
Upright Post 90×70×1.8mm |
|
1 2 3
   R & D Department
R & D Department
R & D Department
|
R & D Department Engineers set up designing, choosing right materials for customers |
R & D Department Testing customized samples load capacity |
R & D Department Develop new products like using all I beams to construct the Mezzanine Floor to increase the floor load bearing support, sometimes can up to 2000KG per square meter. |
Production Line Main Equipments:
Punching Machine - Punch the holes on raw materials
Rolling Mill - Roll and shape the raw materials to become upright post and beam
Cutting Machine - Cut the materials according to customer’s required sizes
Automatic Welding Robot - Weld the beams with hooks on both sides
Automatic Powder Coated Line - deoil, derusting and powder coated
We can accept OEM/ODM, all the sizes are available or specially designed racking system to fit customer's warehouse.
We have set up R & D department since the company has established.
The amount of R & D department has 4 engineers their experience on this field are 6-10 years.
The main job responsibility for R & D staffs are help customers to set up designing according to the requirements given,
choose the economical and right materials for customers, test the products performance especially their load bearing
support, develop new products and etc.
Main software used by the R & D staffs are AutoCAD, 3D Max, Pro-E and etc.
