Powder Coat Steel Rack Supported Mezzanine

Powder Coat Steel Rack Supported Mezzanine

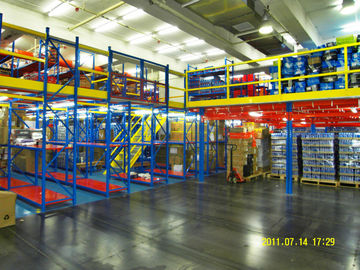

Powder Coat Steel Rack Supported Mezzanine Powder Coat Steel Rack Supported Mezzanine Powder Coat Steel Rack Supported Mezzanine Powder Coat Steel Rack Supported Mezzanine

Large Image :  Powder Coat Steel Rack Supported Mezzanine

Product Details:
Place of Origin: China
Brand Name: ORBIT
Certification: JIS, CE, ISO9001
Model Number: RSM1500-3000W
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meters
Price: Negotiable
Packaging Details: Wrapping Film, Packing Belt and Wooden Bar
Delivery Time: 10-15 Days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 300 Tons / Month
Price Term:: EXW, FOB, CIF, DAF, DDP

Powder Coat Steel Rack Supported Mezzanine

High Light:

pallet rack mezzanine


pallet racking mezzanine


coat steel rack supported mezzanine


Powder Coat Steel Rack Supported Mezzanine For Distribution Center



Quick Details:



Product Name


Pallet Rack/Shelving Supported Mezzanine

Customized Specification


Rack Supported Mezzanine is available in a range of sizes and configurations. Please call or email us and we can work together to get the most cost-effective and practical solution.



Upper/Lower Rack Levels


2 levels, 3 levels, 4 levels, 5 levels


Rack Load Capacity


300KG, 500KG, 700KG, 1000KG, 1500KG per level


Catwalk/Aisle Width


800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm


Catwalk or Aisle Flooring

Load Carry Capacity


300KG, 500KG, 800KG, 1000KG per square meter

Raw Material


high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group



Material Thickness


1.5mm, 1.8mm, 2.0mm, 2.5mm


Surface Treatment


deoil, derusting and powder coat paint finish


Mezzanine Colors


standard blue, orange and customized available


HS Code







Rack supported mezzanines use a structure of pallet rack uprights below the mezzanine to securely support the mezzanine level and its contents. Sometimes called "catwalk systems", these mezzanine configurations are high bay pallet racking with walkways in the aisles between the rack.


Other configurations include open mezzanines with floor decking that rests on the pallet rack upright columns for support. The mezzanine framing members (joists and stringers) bolt to the upright columns to create the decking grid for the mezzanine. With pallet rack below the mezzanine floor, the frequency of support columns is higher, making the mezzanine stable and solidly anchored.


The advantage of this type mezzanine is the efficiency of using space above your pallet rack to add square footage to your facility. You now have additional floor space in which to place more pallet rack, office space, work zones or just about anything you like.


You gain formerly unusable space by accessing vertical space in your facility to extend your storage or manufacturing processes.


Your rack supported mezzanines will be designed by qualified engineers who understand live loading and who make sure the structures they design meet appropriate building code standards. This means the columns must be rated to support both the weight of the mezzanine and the contents stored on the rack at any given time. The framing members will be structurally sound and meet the requirements of ASTM A570-75 Grade E standards. Stringers are directly supported by the pallet rack upright columns, while joists are factory welded to the stringers to retain rigidity and safety. All these design standards lead to a stable, sturdy mezzanine you will find great benefit from for many years to come.


Other design elements to consider are stairs, handrailing, catwalks, pallet gates and decking materials. Safety factors like enclosing the mezzanine with handrail, having kick guards and welded steel stairs, all help prevent falls that could result in injury or death. Choosing fire-proof decking materials that allow air circulation help reduce fire hazards as well as allow sprinkler systems to penetrate to all layers of stored items. Pallet gates and catwalks make loading, unloading and accessing goods more convenient while saving time and labor.


Additional methods of moving materials such as chutes or conveyors should be considered in planning your mezzanine. Traditional forklift placement may not be feasible or wise depending on whether you move by pallet loads or less-than-pallet loads to and from your mezzanine.


Rack supported mezzanines give you so many options in how to use the space above the pallet rack in your facility. It is an economical choice compared to structural mezzanines, and install fairly quickly, meaning you'll have less downtime and fewer interruptions in your production process.


Above all else, you will have increased active floor space available - valuable floor space that lets you expand, improve and optimize.




Take advantage of more of the vertical cube, make better use of your existing space, gain room to optimize and grow


Customized to fit your exact area, height and load requirements


Create new production, office, storage or assembly space, parts departments, stockrooms, records storage, work platforms, distribution centers and more


Professionally engineered and designed to meet all building codes


Bottom shelves support the upper platform, on which the second layer shelves are set, economical, efficient and effective


Designing factors:


How many rack levels for above/underneath flooring -- most popular is 3-4 levels


How about rack load capacity above/underneath flooring -- most popular is 300-800KG per level


What’s the rack supported mezzanine total height? -- most popular is 4000-6000mm


Staircase width -- most popular is 1100mm and 13-15 treads or steps


If possible send us your warehouse layout so that we can set up designing for your side confirmation




Our free services include consultations and sample CAD layouts of your proposed rack system. Our design experts can analyze your application and find an application specific solution for you. Get the racking system you need at the best price guaranteed.
