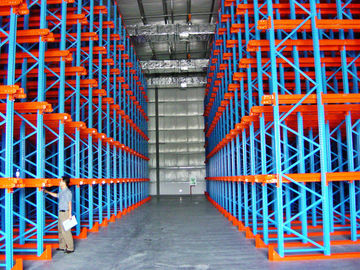

Industrial Warehouse Drive In Pallet Rack For High Density Storage
|Product Name||Drive In Pallet Racks|
|Customized Specification||Drive-in Racking is available in a range of sizes and configurations. Please call or email us and we can work together to get the most cost-effective and practical solution.|
|Pallet Rail Levels||2 levels, 3 levels, 4 levels, 5 levels|
|Load Capacity per Pallet||500KG, 800KG, 1200KG, 1500KG, 2000KG|
|Raw Material||high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group|
|Material Thickness||1.5mm, 1.8mm, 2.0mm, 2.5mm|
|Surface Treatment||deoil, derusting and powder coat paint finish|
|Rack Colors||standard blue, orange and customized available|
Drive-In Rack optimizing available space. Elimination of aisles between shelves. Admits as many references as load lanes. Appropriate system to store homogeneous, low-rotation products with a large number of pallets per reference.
This system is base on the storage by accumulation principle, which enables the highest use of available space in terms of both area and height. Drive-in racking is designed for the storage of homogeneous products. It accommodates a large number of pallets.
Drive-In Rack and Drive-Thru racking are terms that are often used interchangeably. In some environments it can be difficult to differentiate between the two. Typically, Drive-In racking requires operators to drive into the racking system from one side and remove pallets from the same entry point. Some Drive-In rack systems have a wall or are otherwise closed at the opposite end.
Drive-In & Drive-Through Racks offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Racking can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.
A simple way to identify a Drive-In Rack Systems is its LIFO inventory management. Product is rotated in a Last-In, First-Out inventory manner because of the single entry/exit point.
The draw to a Drive-In rack system is its extremely efficient storage concentration. Pallets are stored back-to-back without aisles for exceptionally dense storage. This style system is an excellent solution for product that is not time or date sensitive, or for fast moving pallets that are rotated frequently.
Drive-In rack operators must be very careful not to damage the pallet racking. Because pallets are stored so densely and a driver must enter the pallet racking system with only a small clearance on either side, a Drive-In rack system must be checked for damage frequently. As soon as pallet rack damage is noticed it must be reported and properly repaired or replaced. A strict safety doctrine must be adhered to with a Drive-In rack system.
Drive-in Pallet Rack Features:
Allows your forklift truck to drive into accessible lanes
Perfect for high density storage of largely similar items
Prevents product crushing, and offers damage free storage
Floor single or double stacked pallets always accessible
No special forklift needed
How high (4000mm, 5000mm or 6000mm) -- most popular is 5000mm
What’s your pallet size and load capacity per pallet?
How many pallet rail levels (3, 4 or 5) -- most popular is 3+1=4 levels
Your forklift turning radius need calculate proper passageway?
If possible send us your warehouse layout so that we can set up designing
Our free services include consultations and sample CAD layouts of your proposed rack system. Don't hesitate to consider reviewing the racking systems on site or at our headquarters. Get the racking system you need at the best price guaranteed.
